Spring Batch + 구현

일단 spring batch 를 구현하게 된 배경을 설명하자면,

회사에서 메신저 프로그램을 활용하여 카카오톡의 단체방 처럼 학기 시작하기 전에 학생들의 수업단톡방을 개설하는

배치 프로그램을 개발해야 했다.



그래서 수업테이블에 저장되어 있는 수업을 조회하여 그 수업에 해당되는 학생들을 단톡방에 초대하는 거

까지 에 대한 코드를 설명할 예정이다.



ClassConversationCreateJobConfiguration 이 Class 가 하나의 Job 이 되는 것이다.

기초적인 spring batch 에 대한 설명이 아닌 작성자인 본인에 대한 코드 기록용이므로 참고 부탁드린다..😥



1. Spring Batch 의 시작 Job 개발

    1-1. Job 개발

	@Bean
	@Qualifier("ClassCourseConversationCreateJob")
	public Job ClassCourseConversationCreateJob() {
		return jobBuilderFactory.get("ClassCourseConversationCreateJob")
							    .start(ClassCourseConversationCreateStep())
							    .listener(new JobListener())
							    .build();
	}

ClassCourseConversationCreateJob 은 ClassCourseConversationCreateStep() 으로 구성되어 있다.



	@Bean
	@JobScope
	public Step ClassCourseConversationCreateStep() {
		return stepBuilderFactory.get("ClassCourseConversationCreateStep")
								 .<Map<String,Object>, Map<String,Object>>chunk(chunkSize)
								 .reader(newCourseReaderFromLocalDB(null, null, null))
								 .processor((Function<Map<String,Object>,Map<String,Object>>) (map) -> {
									 map.put("EVENT", "CLASS_CONVERSATION_CREATE");
									 JSONObject jsonObj = new JSONObject(map);
									try {
										eventProcessor.runEventProcessor(jsonObj.toString());
									} catch (InterruptedException e) {
										e.printStackTrace();
									}
									 return map;
								 })
								 .writer(new ItemWriter<Map<String,Object>>() {
					                    @Override
					                    public void write(List<? extends Map<String,Object>> items) throws Exception {
					                        for (Map<String,Object> item : items) {
					                        	log.info("ClassCourseConversationCreateStep = {}", item);
					                        }
					                    }
					              })
								 .listener(new StepListener())
								 .allowStartIfComplete(true)
								 .build();
	}

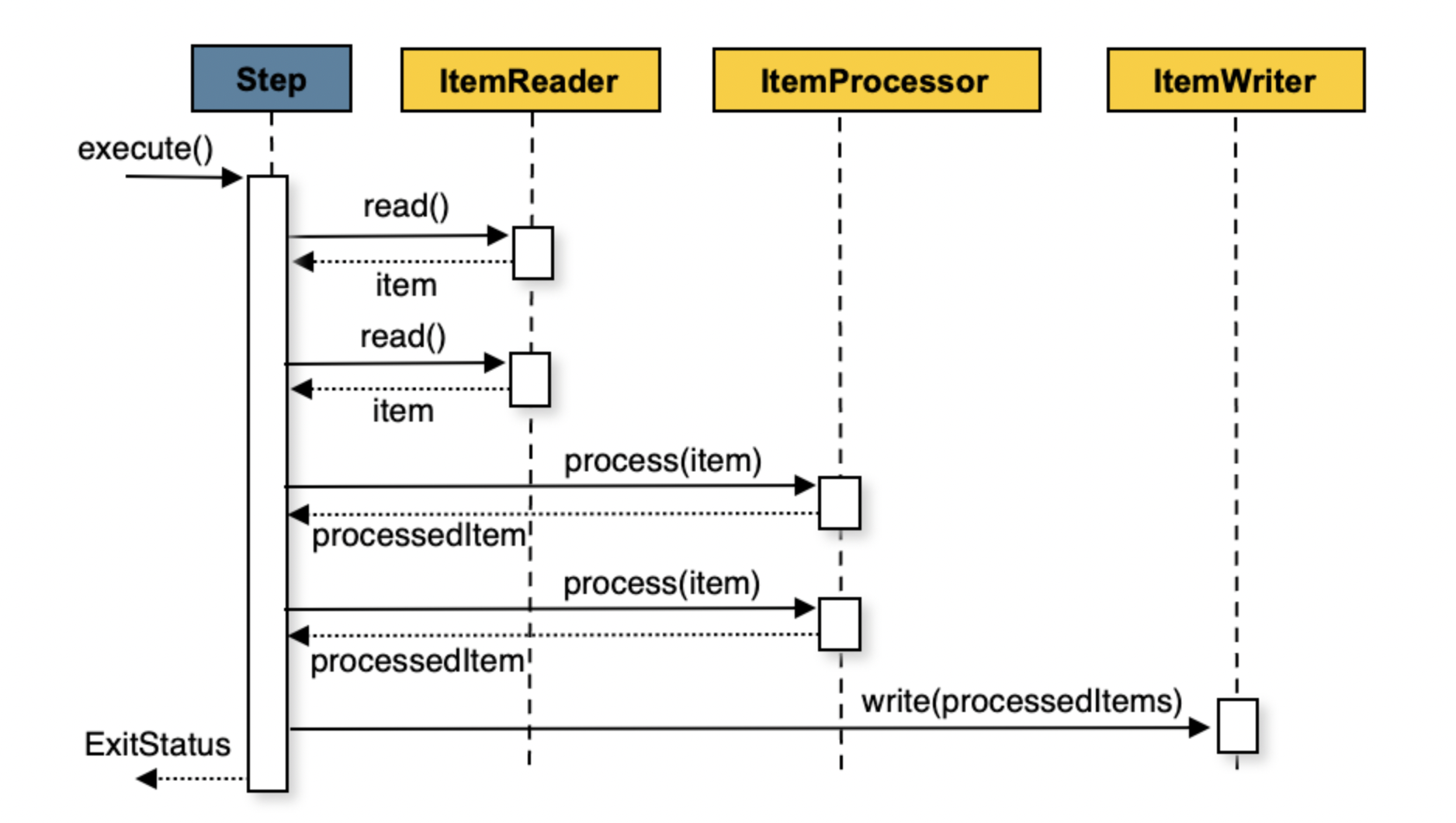

🧸 chunk 지향 프로그래밍 (<inputType, outputType>chunk(chunkSize))

      : 한번에 하나씩 item을 입력받아서 chunk 단위로 트랜잭션을 다루는 방식. ( ex) <Map<String,Object>, Map<String,Object>>chunk(chunkSize)) 실패할 경우 chunk 단위만큼만 롤백이 된다.

---

Reader 와 Processor는 1건의 item만 다뤄지고, Writer 에서는 chunk 단위로 처리된다.

spring batch 처리 방법

- Reader : 데이터 읽기

- Processor : 데이터 가공

- Writer : Chunk 단위로 처리(일괄저장)

---

Processor 부분은 CLASS_CONVERSATION_CREATE 라는 EventController가 실행되는 방식으로 구현하였다.

    1-2. EventProcessorImpl 개발

EventController 어노테이션 코드이다.

import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

@Target({ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
public @interface EventController {
	String value();
	int tokenConsume() default 1;
}

EventProcessorImpl 구현 코드이다.

import java.io.BufferedReader;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.lang.reflect.InvocationTargetException;
import java.lang.reflect.Method;
import java.time.Duration;
import java.util.HashMap;
import java.util.Map;
import java.util.Set;
import java.util.concurrent.TimeUnit;
import java.util.stream.Collectors;
import java.util.stream.Stream;

import javax.annotation.PostConstruct;

import org.springframework.beans.BeansException;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;
import org.springframework.stereotype.Component;

import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.core.type.TypeReference;
import com.fasterxml.jackson.databind.ObjectMapper;

import io.github.bucket4j.Bandwidth;
import io.github.bucket4j.Bucket;
import io.github.bucket4j.local.SynchronizationStrategy;
import lombok.extern.slf4j.Slf4j;

@Slf4j
@Component
public class EventProcessorImpl implements ApplicationContextAware {
	private static ApplicationContext applicationContext;

	@Override
	public void setApplicationContext(ApplicationContext ctx) throws BeansException {
		applicationContext = ctx;
	}

	public static ApplicationContext getApplicationContext() {
		return applicationContext;
	}

	private Map<String,Method> eventProcessors = null;
	private Map<String,Object> eventObjects = null;
	private final Map<Class, Object> objectCache = new HashMap<>();

	public Set<Class> findAllClassesUsingClassLoader(String packageName){
		InputStream stream = this.getClass().getClassLoader()
								 .getResourceAsStream(packageName.replaceAll("[.]", "/"));
		BufferedReader reader = new BufferedReader(new InputStreamReader(stream));

		return reader.lines()
				.filter(line -> line.endsWith(".class"))
				.map(line -> getClass(line,packageName))
				.collect(Collectors.toSet());
	}

	private Class getClass(String className, String packageName) {
		try {
			return Class.forName(packageName + "."
					+ className.substring(0, className.lastIndexOf(".")));
		} catch(ClassNotFoundException e) {

		}
		return null;
	}

    public Object getEventObject(String eventName) {
        Object o = null;
        o = newInstance(eventProcessors.get(eventName).getDeclaringClass());
        return o;
    }

    public Object newInstance(Class c) {
        if (true == objectCache.containsKey(c))
            return objectCache.get(c);

        String className = c.getName();
        className = className.substring(className.lastIndexOf('.') + 1);
        className = Character.toLowerCase(className.charAt(0)) + className.substring(1);

        Object o = null;

        if (true == applicationContext.containsBean(className)) {
            o = applicationContext.getBean(c);
            objectCache.put(c, o);
            return o;
        }

        if (true == applicationContext.containsBean(className)) {
            objectCache.put(c, o);
            o = applicationContext.getBean(c);
            return o;
        }

        try {
            o = c.getDeclaredConstructor().newInstance();
        } catch (InstantiationException e) {
            e.printStackTrace();
        } catch (IllegalAccessException e) {
            e.printStackTrace();
        } catch (InvocationTargetException e) {
            e.printStackTrace();
        } catch (NoSuchMethodException e) {
            e.printStackTrace();
        }

        objectCache.put(c, o);
        return o;
    }

    @PostConstruct
    private void init() {

        // mq.controller 패키지 밑에 있는 Controller만 탐색한다.
        String packageName = getClass().getPackage().getName();
        eventProcessors = findAllClassesUsingClassLoader(packageName)
                .stream()
                .flatMap(c -> Stream.of(c.getDeclaredMethods()))
                .filter(m -> m.isAnnotationPresent(EventController.class))
                .collect(Collectors.toMap(
                        m -> m.getAnnotation(EventController.class).value(),
                        m -> m
                ));

        if ( eventProcessors.size() == 0 ) {
            Map<String, BotEventController> beansWithAnnotation = applicationContext.getBeansOfType(BotEventController.class);
            eventProcessors = beansWithAnnotation.entrySet().stream()
                    .flatMap(m -> Stream.of(m.getValue().getClass().getDeclaredMethods()))
                    .filter(m -> m.isAnnotationPresent(EventController.class))
                    .collect(Collectors.toMap(
                            m -> m.getAnnotation(EventController.class).value(),
                            m -> m
                    ));

        }

        eventObjects = eventProcessors.entrySet().stream()
                .collect(Collectors.toMap(
                        e -> e.getKey(),
                        e -> getEventObject(e.getKey())
                ));

        log.info(eventProcessors.toString());
    }

    private Bucket bucket;

    @PostConstruct
    public void initRateLimiter() {
    	bucket = Bucket.builder()
                .addLimit(Bandwidth.simple(175, Duration.ofMinutes(1)))
                .withSynchronizationStrategy(SynchronizationStrategy.SYNCHRONIZED)
                .build();
    }

    // 설정상 Event가 동시에 처리되지는 않지만 만약을 위해 synchronized method로 처리한다.
    public synchronized Boolean runEventProcessor(String payload) throws InterruptedException {
        ObjectMapper mapper = new ObjectMapper();
        Map<String, Object> eventJson = null;

        try {
            eventJson = mapper.readValue(payload, new TypeReference<Map<String, Object>>() {
            });
            log.info("[Listened EVENT]" + eventJson.toString());
        } catch (JsonProcessingException e) {
            e.printStackTrace();
        }

        String event = (String) eventJson.get("EVENT");
        Object invokeObject = eventObjects.get(event);
        Method invokeMethod = eventProcessors.get(event);
        EventController eventController = invokeMethod.getAnnotation(EventController.class);

        //빨리 호출할 필요가 없어서 무조건 100msec 쉰다.
        Thread.sleep(100);

        // Simple Rate Limit. api call limits 200 per minute.
        long nanosToWaitForRefill = bucket.estimateAbilityToConsume(eventController.tokenConsume())
                .getNanosToWaitForRefill();

        if (nanosToWaitForRefill > 0) {
            log.info("Too Many Events: Pending For " + TimeUnit.NANOSECONDS.toMillis(nanosToWaitForRefill) + " msecs");
            Thread.sleep(TimeUnit.NANOSECONDS.toMillis(nanosToWaitForRefill) + 50); // 내림 이슈로 +1만 하면 되지만 추가 마진 부여
        }

        if (!bucket.tryConsume(eventController.tokenConsume()))
            return false;

        Boolean ret = false;

        try {
            invokeMethod.setAccessible(true);
            ret = (Boolean) invokeMethod.invoke(invokeObject, eventJson);
        } catch (IllegalAccessException e) {
            e.printStackTrace();
        } catch (InvocationTargetException e) {
            e.printStackTrace();
        }

        return ret;
    }
}



@EventController 에 대한 코드와 eventProcessor로 @EventController 가 붙은 메소드를 실행 시키는 인터페이스 코드에 대한 것이었다.



eventProcessor.runEventProcessor 해당 코드는 jsonObj 에 담긴 이벤트 name 을 가진 @EventController를 찾아서 해당 메소드를 실행 시키게 될 것이다.

	@EventController(value = "CLASS_CONVERSATION_CREATE", tokenConsume=1)
    public boolean classConversationCreateController(Map<String, Object> eventJson){

		String syy = eventJson.get("SYY").toString();
		String smtCd = eventJson.get("SMT_CD").toString();
		String subjtCd = eventJson.get("SUBJT_CD").toString();
		String unvfrStdrDeptCd = eventJson.get("UNVFR_STDR_DEPT_CD").toString();
		String corseDvclsNo = eventJson.get("CORSE_DVCLS_NO").toString();

		Boolean ret = clsBotEventService.classConversationCreate(syy, smtCd, subjtCd, unvfrStdrDeptCd, corseDvclsNo);
		return ret;
    }



이러한 식으로 controller 가 구현되어 있다.



2. Scheduler

import java.text.SimpleDateFormat;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.Trigger;
import org.springframework.scheduling.concurrent.ThreadPoolTaskScheduler;
import org.springframework.scheduling.support.CronTrigger;
import org.springframework.stereotype.Component;

import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import metabot.JobRunner;

@Slf4j
@Component
@RequiredArgsConstructor
public abstract class DynamicChangeScheduler {
	private ThreadPoolTaskScheduler scheduler;

	@Autowired
	JobRunner jobRunner;

//	@Value("${application.bot.default-schedule}")
	private String defaultCron;


	public void startScheduler(String params) {
		scheduler = new ThreadPoolTaskScheduler();
		scheduler.initialize();
		scheduler.schedule(getRunnable(params), getTrigger());
	}

	public void stopScheduler() {
		scheduler.shutdown();
	}

	private Runnable getRunnable(String params) {
		return new Runnable() {
			@Override
			public void run() {
				long curTime = System.currentTimeMillis();
				log.info("######### = {} parameters = {}", new SimpleDateFormat("yyyy-MM-dd HH:mm:ss.SSS").format(curTime), params);
				jobRunner.start(params);
			}
		};
	}

	// 실행시간 결정
	private Trigger getTrigger() {
		return new CronTrigger(defaultCron);
	}

	public void changeCronSet(String defaultCron) {
		this.defaultCron = defaultCron;
	}
}

ThreadPoolTaskScheduler 를 활용하여 DynamicScheduler 를 구현하였다.

changeCronSet 메소드에서 스케줄을 새롭게 세팅 할 수 있다.

getRunnable 메소드에서 jobRunner.start 를 통해 해당 Job을 실행 시킬 수 있도록 하였다.



3. 최종적인 Job Config 관련 코드

import java.util.List;
import java.util.Map;
import java.util.function.Function;

import javax.sql.DataSource;

import org.json.simple.JSONObject;
import org.springframework.batch.core.Job;
import org.springframework.batch.core.Step;
import org.springframework.batch.core.configuration.JobRegistry;
import org.springframework.batch.core.configuration.annotation.JobBuilderFactory;
import org.springframework.batch.core.configuration.annotation.JobScope;
import org.springframework.batch.core.configuration.annotation.StepBuilderFactory;
import org.springframework.batch.core.configuration.annotation.StepScope;
import org.springframework.batch.core.configuration.support.JobRegistryBeanPostProcessor;
import org.springframework.batch.item.ItemWriter;
import org.springframework.batch.item.database.JdbcCursorItemReader;
import org.springframework.batch.item.database.builder.JdbcCursorItemReaderBuilder;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.jdbc.core.ColumnMapRowMapper;
import org.springframework.jdbc.core.RowMapper;

import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import metabot.bot.batch.job.listener.config.JobListener;
import metabot.bot.batch.job.listener.config.StepListener;
import metabot.botbroker.event.controller.EventProcessorImpl;

@Slf4j
@RequiredArgsConstructor
@Configuration
/*
 * 방 생성 Job
 * 실행주기 : 1학기, 여름계절학기, 2학기, 겨울계절학기
 * */
public class ClassConversationCreateJobConfiguration extends BatchJobConfiguration{
	private final JobBuilderFactory jobBuilderFactory;
	private final StepBuilderFactory stepBuilderFactory;

    private final EventProcessorImpl eventProcessor;

	private static final int chunkSize = 100;

	@Autowired
    @Qualifier("tiberoDataSource")
    private final DataSource tiberoDataSource;

	@Bean
	@Qualifier("ClassCourseConversationCreateJob")
	public Job ClassCourseConversationCreateJob() {
		return jobBuilderFactory.get("ClassCourseConversationCreateJob")
							    .start(ClassCourseConversationCreateStep())
							    .listener(new JobListener())
							    .build();
	}

	@Bean
	@JobScope
	public Step ClassCourseConversationCreateStep() {
		return stepBuilderFactory.get("ClassCourseConversationCreateStep")
								 .<Map<String,Object>, Map<String,Object>>chunk(chunkSize)
								 .reader(newCourseReaderFromLocalDB(null, null, null))
								 .processor((Function<Map<String,Object>,Map<String,Object>>) (map) -> {
									 map.put("EVENT", "CLASS_CONVERSATION_CREATE");
									 JSONObject jsonObj = new JSONObject(map);
									try {
										eventProcessor.runEventProcessor(jsonObj.toString());
									} catch (InterruptedException e) {
										e.printStackTrace();
									}
									 return map;
								 })
								 .writer(new ItemWriter<Map<String,Object>>() {
					                    @Override
					                    public void write(List<? extends Map<String,Object>> items) throws Exception {
					                        for (Map<String,Object> item : items) {
					                        	log.info("ClassCourseConversationCreateStep = {}", item);
					                        }
					                    }
					              })
								 .listener(new StepListener())
								 .allowStartIfComplete(true)
								 .build();
	}

    @Bean
    @StepScope
    // TERM_CD: 10(1학기), 11(여름학기), 20(2학기), 21(겨울학기)
    public JdbcCursorItemReader<Map<String,Object>> newCourseReaderFromLocalDB(
    		 @Value("#{jobParameters['syy']}") String syy
    		,@Value("#{jobParameters['smtCd']}") String smtCd
    		,@Value("#{jobParameters['subjtCd']}") String subjtCd) {

        RowMapper<Map<String, Object>> mapper = new ColumnMapRowMapper();
        // DB 연결되면 DB로 변경
        return new JdbcCursorItemReaderBuilder<Map<String,Object>>()
                .fetchSize(chunkSize)
                .dataSource(tiberoDataSource)
                .verifyCursorPosition(false)
                .rowMapper(mapper)
                .sql(String.format(
		                "	SELECT SUBJT_CD	-- 과목CD\n"+
		                "		,(SELECT SCH.FN_SCUR_SUBJT_NM(SUBJT_CD) FROM DUAL) AS SUBJT_NM\n"+
		                "		,SYY\n"+
		                "		,SMT_CD\n"+
		                "		,UNVFR_STDR_DEPT_CD\n"+
		                "		,CORSE_DVCLS_NO\n"+
		                "	FROM [테이블명]\n"+
		                "	WHERE 1 = 1\n"+
		                "		AND SYY = '%s'\n"+
		                "		AND SMT_CD = '%s'\n"+
		                "		AND SUBJT_CD LIKE 'U%%'\n"+
		                "	ORDER BY SUBJT_CD, UNVFR_STDR_DEPT_CD, CORSE_DVCLS_NO\n"
                        ,syy,smtCd,subjtCd))
                .name("newCourseReaderFromLocalDB")
                .build();
    }

    @Bean
    public JobRegistryBeanPostProcessor jobRegistryBeanPostProcessor(JobRegistry jobRegistry) {
        JobRegistryBeanPostProcessor jobRegistryBeanPostProcessor = new JobRegistryBeanPostProcessor();
        jobRegistryBeanPostProcessor.setJobRegistry(jobRegistry);
        return jobRegistryBeanPostProcessor;
    }
}
